DTC B1A25-13: Front TV Antenna Amplifier (LH) Signal Circuit Malfunction
B1A25-13: (CMU) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Front TV antenna amplifier (LH) signal circuit malfunction |
| Detection condition |
- The remote tuner (RT) detects an open circuit in the front TV antenna amplifier (LH) signal circuit or a disconnection with the front TV antenna amplifier (LH).
|
| Fail-safe |
|
| Possible cause |
- DTCs are stored in the body control module (BCM). (Internal malfunction related DTCs are stored.) (See DTC TABLE [BCM]
.)
- DTCs are stored in the connectivity master unit (CMU). (Internal malfunction related DTCs are stored.) (See DTC TABLE [CMU] .)
- DTC is stored in the connectivity master unit (CMU). (DTC related to the remote tuner (RT) is stored.) (See B1A33-49: [CMU] .)
- Malfunction in wiring harness (including connector/terminal) between front TV antenna amplifier (LH) and remote tuner (RT) (See
CIRCUIT INSPECTION
.) (See
CONNECTOR INSPECTION
.)
- Front TV antenna amplifier (LH) malfunction (Refer to [TV ANTENNA AMPLIFIER INSPECTION]
in service information.)
- Remote tuner (RT) malfunction (Refer to REMOTE TUNER (RT) REMOVAL/INSTALLATION
in service information.)
|
| Repeatability verification procedure |
- Clear the DTC recorded in the memory. (See
CLEARING DTC
.)
|

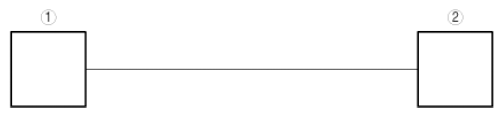

 Courtesy of MAZDA MOTORS CORP.
|
| 1 |
Remote tuner (RT) |
| 2 |
Front TV antenna amplifier (LH) |
