Trunk Side Insulator Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(US)] .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    7. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    8. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    9. Rear center seat belt anchor (See REAR BUCKLE REMOVAL/INSTALLATION .)
    10. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    11. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    12. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(US)] .)
  3. Remove the fasteners.

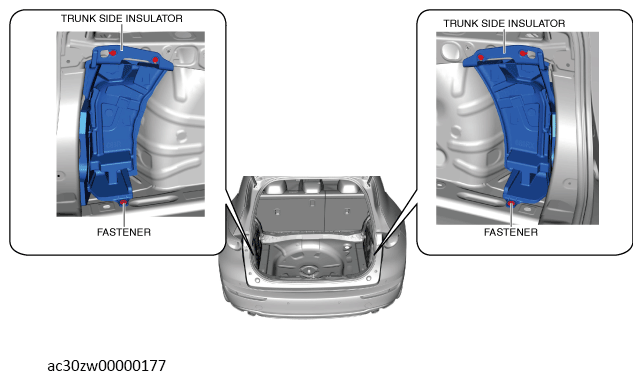

    G13560819Courtesy of MAZDA MOTORS CORP.
  4. Remove the trunk side insulator in the direction of the arrows shown in the figure while detaching the clips.

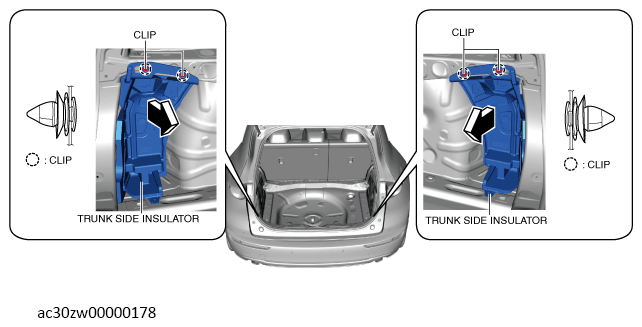

    G13560820Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
