Trunk End Trim Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION [(US)] .)

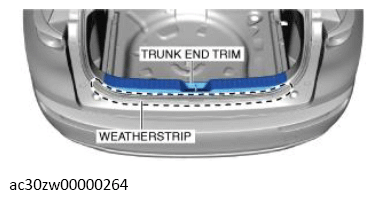

- Partially peel back the weatherstrip.

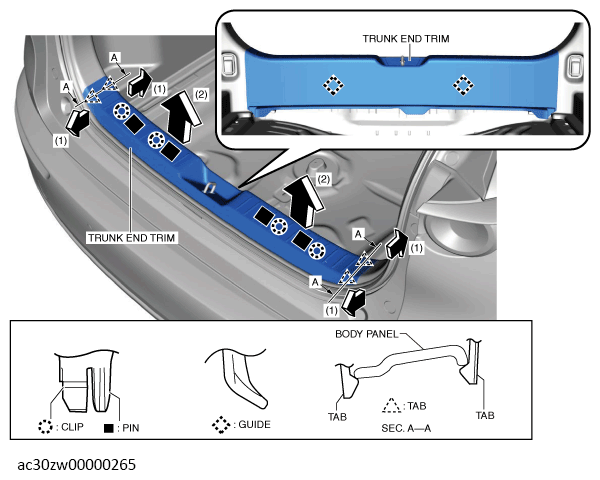

- Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching tabs, clips, pins and guides.
- Install in the reverse order of removal.
