Automatic Transmission Shift Mechanism Location Index

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

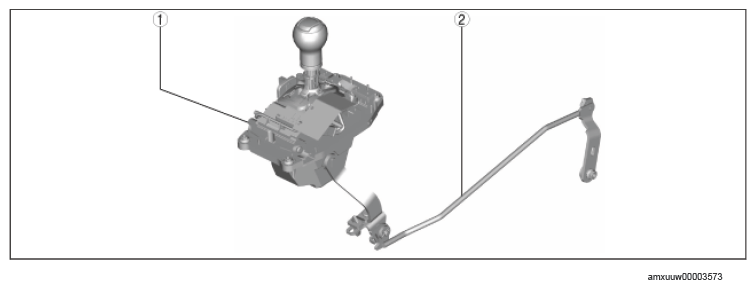

PART DESCRIPTION

Component no.	Refer to
1	Selector lever (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .) See SELECTOR LEVER INSPECTION .) See SHIFT-LOCK SYSTEM INSPECTION .) (See NOT P POSITION SWITCH INSPECTION .)
2	Control rod (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
