OCV For Hydraulic Variable Valve Timing System Removal/Installation

WARNING:

• A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
3. Remove the ignition coil/ion sensors. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION ).
4. Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION ).
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

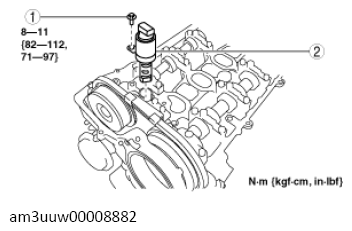

Fig 1: Oil Control Valve For Hydraulic Variable Valve Timing System Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART SPECIFICATION

1	Bolt
2	OCV for hydraulic variable valve timing system
