No. 3 Engine Mount: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

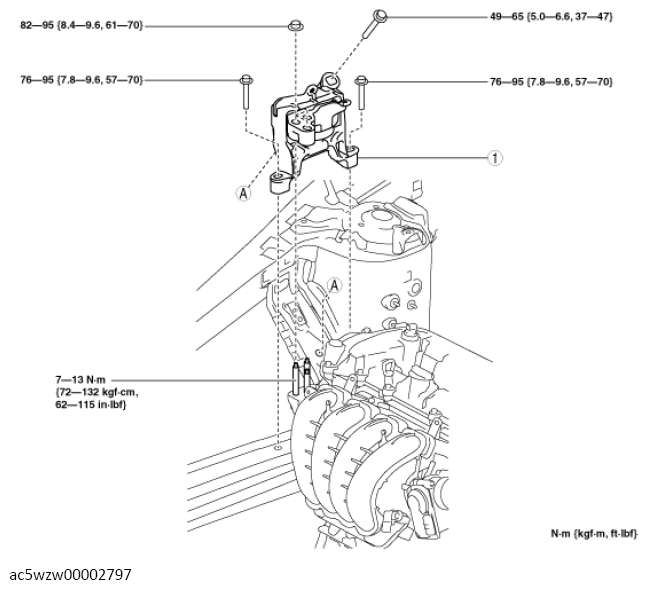

    Fig 1: No. 3 Engine Mount Components With Torque Specification
    G13671987Courtesy of MAZDA MOTORS CORP.
PART SPECIFICATION

1 No. 3 engine mount
(See No. 3 engine mount removal note ).
(See No. 3 engine mount installation note ).
