No. 3 engine mount installation note

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When replacing the No. 3 engine mount, place a mark at the same position as the one placed before removal.
  • If the No. 3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.
  1. Tighten the engine front cover stud bolts.
    G12188549Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}

  2. Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:

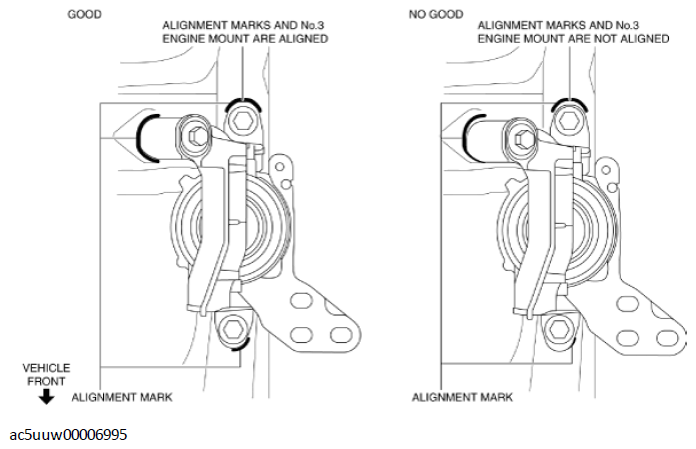

    1. Align the alignment marks on the body side and No. 3 engine mount, and temporarily tighten the bolts shown in the figure.
      G11429807Courtesy of MAZDA MOTORS CORP.

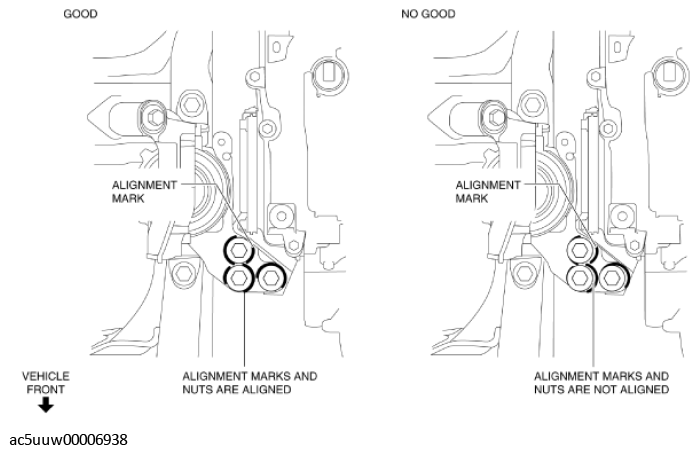

    2. Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No. 3 engine mount and nuts.
      • If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.
    G11429808Courtesy of MAZDA MOTORS CORP.

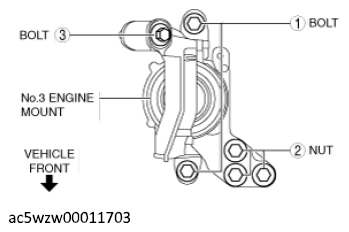

  3. Tighten the No. 3 engine mount installation bolts and nuts in the order shown in the figure.
    Fig 1: No. 3 Engine Mount Nuts And Bolts Tightening Sequence
    G12188552Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Installation position Tightening torque
    1 76-95 N.m {7.8-9.6 kgf.m, 57-70 ft.lbf}
    2 82-95 N.m {8.4-9.6 kgf.m, 61-70 ft.lbf}
    3 49-65 N.m {5.0-6.6 kgf.m, 37-47 ft.lbf}
  4. Remove the engine lifter or garage jack.

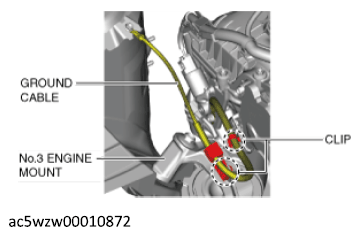

  5. Install the ground cable to the No. 3 engine mount.
    G12188546Courtesy of MAZDA MOTORS CORP.
