Engine Location Index

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

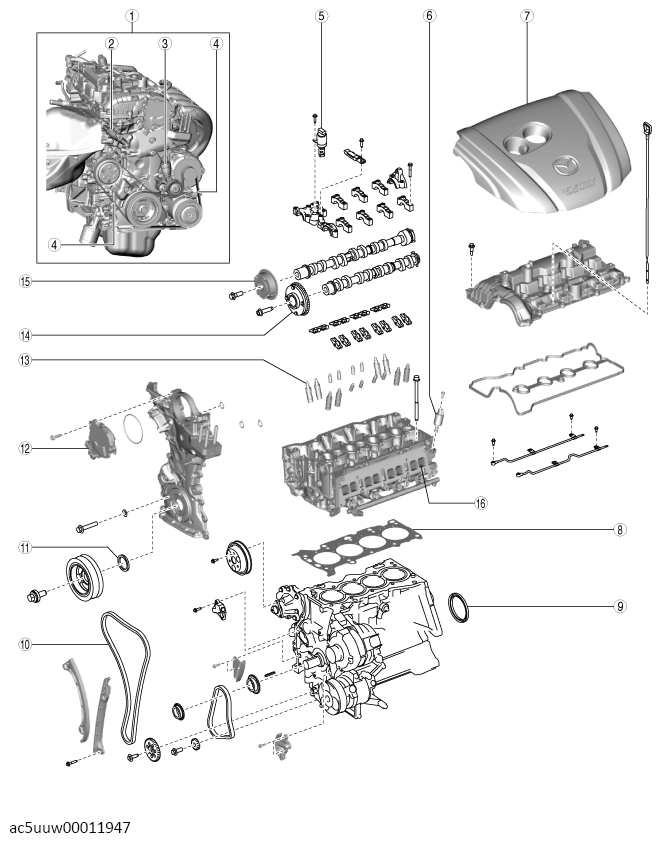

PART SPECIFICATION

1	Engine (See ENGINE TUNE-UP ). (See COMPRESSION INSPECTION ). (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY ). (See ENGINE REMOVAL/INSTALLATION ). (See ENGINE DISASSEMBLY/ASSEMBLY ).
2	OCV for No. 1 cylinder deactivation (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION REMOVAL/INSTALLATION ). (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION INSPECTION ).
3	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION ). (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION ).
4	Drive belt (See DRIVE BELT INSPECTION ). (See DRIVE BELT REMOVAL/INSTALLATION ).
5	OCV for hydraulic variable valve timing system (See OCV FOR HYDRAULIC VARIABLE VALVE TIMING SYSTEM REMOVAL/INSTALLATION ). (See OCV FOR HYDRAULIC VARIABLE VALVE TIMING SYSTEM INSPECTION ).
6	OCV for No. 4 cylinder deactivation (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION REMOVAL/INSTALLATION ). (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION INSPECTION ).
7	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
8	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT ).
9	Rear oil seal (See REAR OIL SEAL REPLACEMENT ).
10	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION ).
11	Front oil seal (See FRONT OIL SEAL REPLACEMENT ).
12	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION ). (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION ).
13	HLA, Switchable HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION ). (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION ).
14	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION ). (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION ).
15	Hydraulic variable valve timing actuator (See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION ). (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION ).
16	Cylinder head (See CYLINDER HEAD REMOVAL/INSTALLATION ).
