Section 22 (Automatic Transaxle - Service Information (FW6AX-El))
>>
Automatic Transaxle Location Index
Automatic Transaxle Location Index
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.

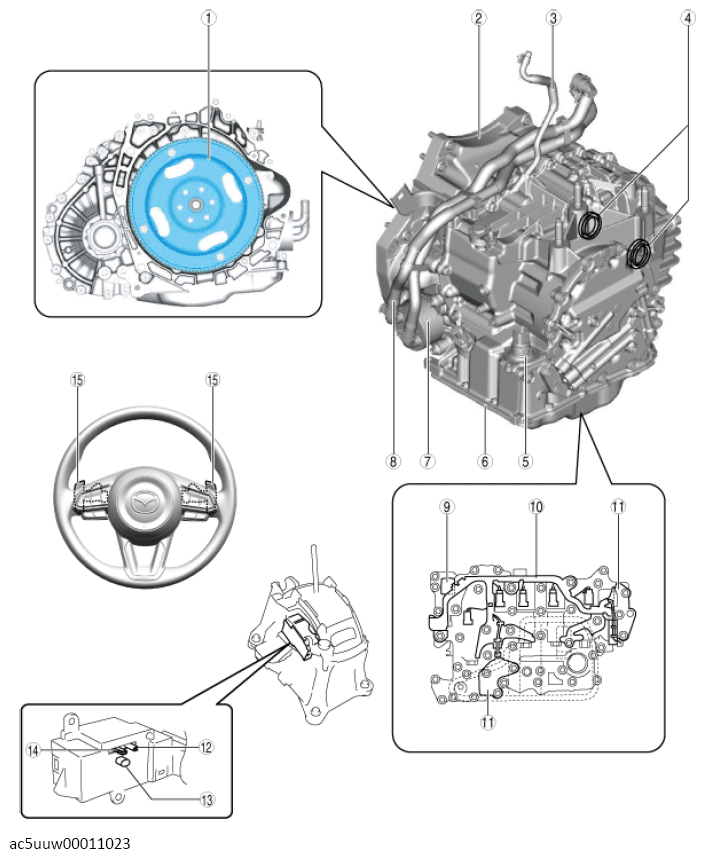

PART DESCRIPTION
1
Drive plate
(See
DRIVE PLATE REMOVAL/INSTALLATION
).
2
Automatic transaxle
(See
MECHANICAL SYSTEM TEST
).
(See
ROAD TEST
).
(See
AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION
).
(See
AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT
).
(See
AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT
).
(See
AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL]
).
(See
INITIAL LEARNING
).
3
Breather hose
(See
AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL]
).
4
Oil seal (differential)
(See
OIL SEAL (DIFFERENTIAL) REPLACEMENT
).
5
Oil seal (control valve body)
(See
OIL SEAL (CONTROL VALVE BODY) REPLACEMENT
).
6
Control valve body
(See
CONTROL VALVE BODY REMOVAL/INSTALLATION
).
(See
TCM CONFIGURATION
).
7
Oil cooler
(See
OIL COOLER REMOVAL/INSTALLATION
).
8
Water hose
(See
OIL COOLER REMOVAL/INSTALLATION
).
9
ON/OFF solenoid
(See
ON/OFF SOLENOID REMOVAL/INSTALLATION
).
10
Coupler component
(See
COUPLER COMPONENT REMOVAL/INSTALLATION
).
11
Oil pressure switch
(See
OIL PRESSURE SWITCH REMOVAL/INSTALLATION
).
12
Down switch
(See
DOWN SWITCH INSPECTION
).
(See
DOWN SWITCH REMOVAL/INSTALLATION
).
13
M position switch
(See
M POSITION SWITCH INSPECTION
).
(See
M POSITION SWITCH REMOVAL/INSTALLATION
).
14
Up switch
(See
UP SWITCH INSPECTION
).
(See
UP SWITCH REMOVAL/INSTALLATION
).
15
Steering shift switch
(See
STEERING SHIFT SWITCH INSPECTION
).
(See
STEERING SHIFT SWITCH REMOVAL/INSTALLATION
).
