Engine Location Index

WARNING: This page is about a different variant/trim than selected.

U.S.A. and CANADA

G11436613

Courtesy of MAZDA MOTORS CORP.

Except U.S.A. and CANADA

G14464650

Courtesy of MAZDA MOTORS CORP.

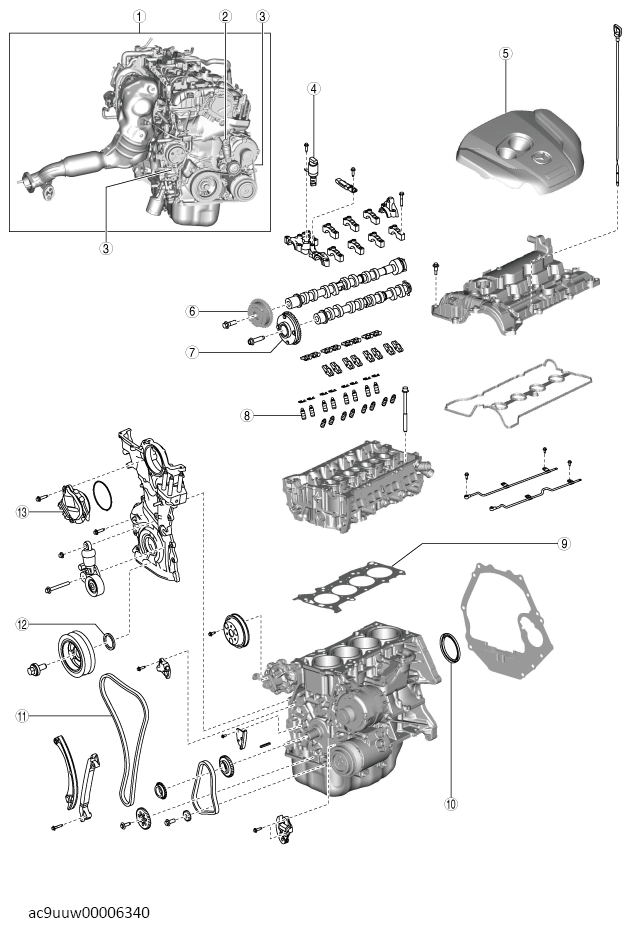

PART SPECIFICATION

1	Engine (See ENGINE TUNE-UP [VIN Y] ). (See COMPRESSION INSPECTION [VIN Y] ). (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [VIN Y] ). (See ENGINE REMOVAL/INSTALLATION [VIN Y] ). (See ENGINE DISASSEMBLY/ASSEMBLY [VIN Y] ).
2	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [VIN Y] ). (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [VIN Y] ).
3	Drive belt (See DRIVE BELT INSPECTION [VIN Y] ). (See DRIVE BELT REMOVAL/INSTALLATION [VIN Y] ).
4	OCV (See OIL CONTROL VALVE (OCV) INSPECTION [VIN Y] ). (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [VIN Y] ).
5	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [VIN Y] ).
6	Hydraulic variable valve timing actuator (See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [VIN Y] ). (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [VIN Y] ).
7	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [VIN Y] ). (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [VIN Y] ).
8	HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [VIN Y] ). (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [VIN Y] ).
9	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [VIN Y] ).
10	Rear oil seal (See REAR OIL SEAL REPLACEMENT [VIN Y] ).
11	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [VIN Y] ).
12	Front oil seal (See FRONT OIL SEAL REPLACEMENT [VIN Y] ).
13	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION [VIN Y] ). (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [VIN Y] ).
