Oil Cooler (With Oil Cooler No. 2): Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
- Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] ).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] ).
- Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
- Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST ).

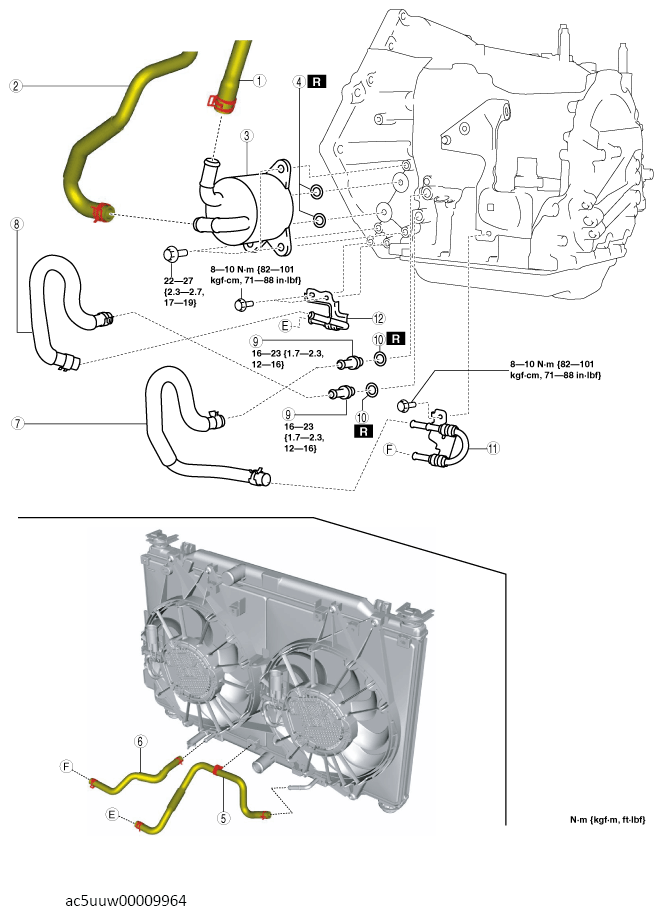

PART DESCRIPTION
| 1 | Water hose No. 1 (See Water hose No. 1 and No. 2 (oil cooler side) installation note ). |
| 2 | Water hose No. 2 (See Water hose No. 1 and No. 2 (oil cooler side) installation note ). |
| 3 | Water-cooled oil cooler |
| 4 | O-rings |
| 5 | Oil hose No. 1 (See Oil hose No. 1 (radiator outside) installation note ). (See Oil hose No. 1 (oil pipe No. 2 side) installation note ). |
| 6 | Oil hose No. 2 (See Oil hose No. 2 (radiator inside) installation note ). (See Oil hose No. 2 (oil pipe No. 1 side) installation note ). |
| 7 | Oil hose No. 3 (See Oil hose No. 3 (transaxle side) installation note ). (See Oil hose No. 3 (oil pipe No. 1 side) installation note ). |
| 8 | Oil hose No. 4 (See Oil hose No. 4 (transaxle side) installation note ). (See Oil hose No. 4 (oil pipe No. 2 side) installation note ). |
| 9 | Connector bolt |
| 10 | Gasket |
| 11 | Oil pipe No. 1 |
| 12 | Oil pipe No. 2 |
