Oil hose No. 2 (radiator inside) installation note

WARNING: This page is about a different variant/trim than selected.

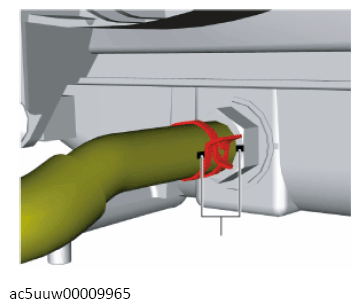

  1. Install the oil hose No. 2 to the radiator as shown in the figure with the hose clamp expanded.
    NOTE:
    • A new oil hose No. 2 and hose clamp are attached.
    G14467283Courtesy of MAZDA MOTORS CORP.
  2. Install the hose clamp so that center A of the hose clamp tab is aligned with the marking as shown in the figure.
    G11441179Courtesy of MAZDA MOTORS CORP.
    • Verify that the installation angle of the hose clamp is within the range shown in the figure.
  3. Verify that the hose clamp does not interfere with any other components.
