On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram

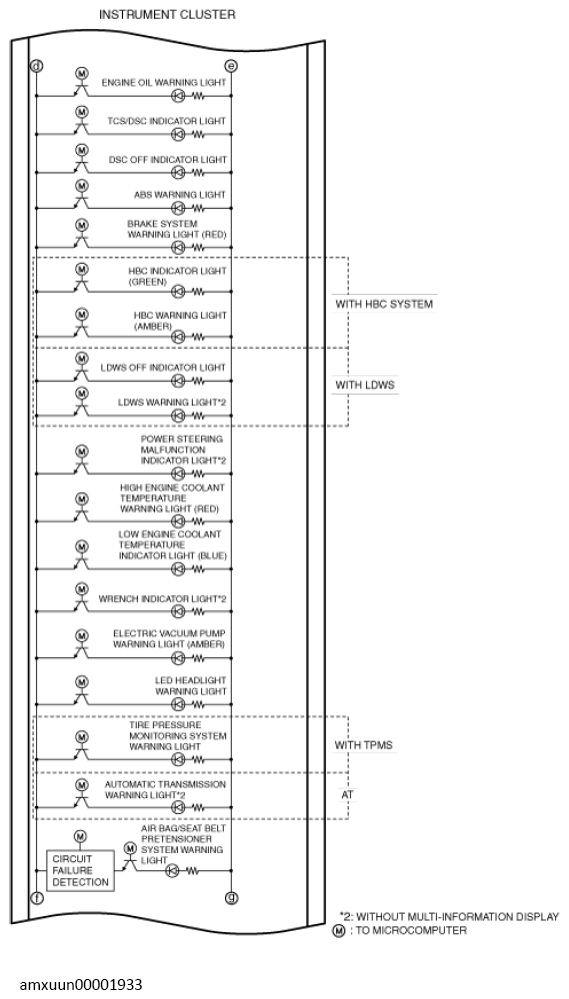

Courtesy of MAZDA MOTORS CORP.

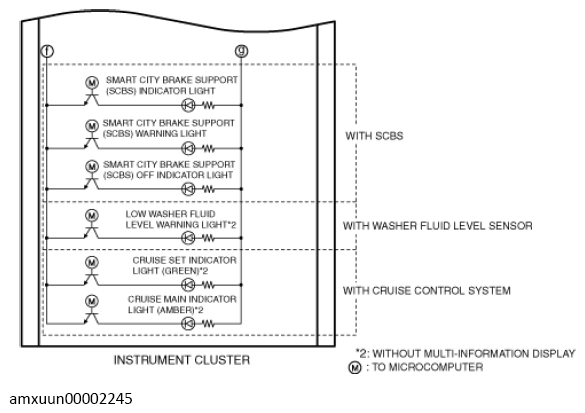

Courtesy of MAZDA MOTORS CORP.

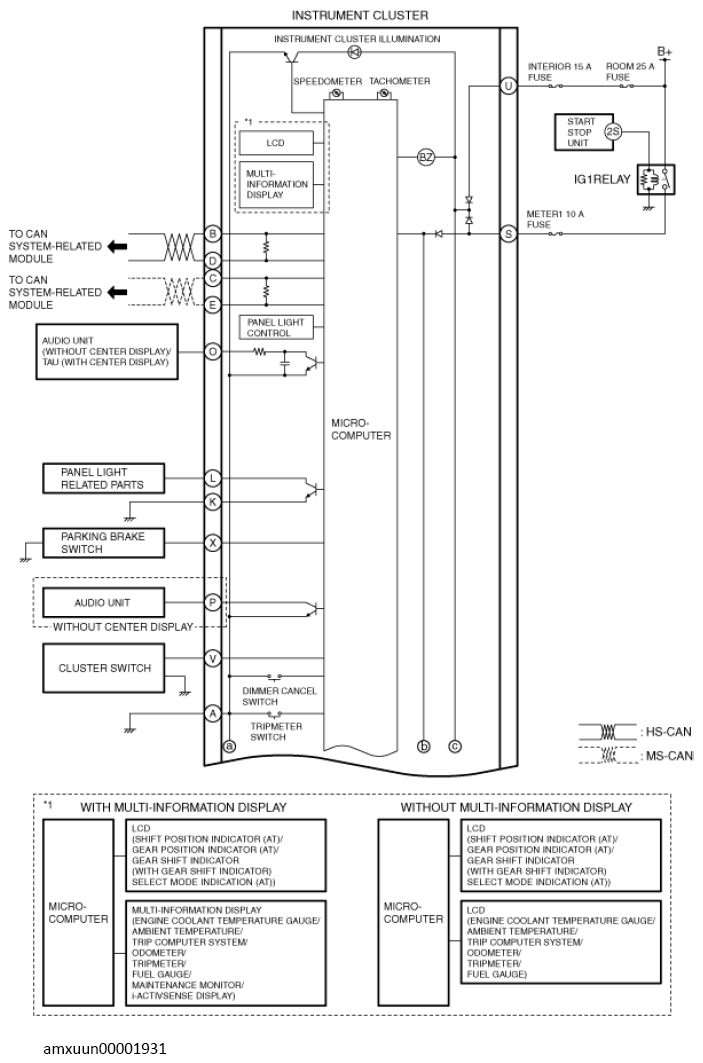

Courtesy of MAZDA MOTORS CORP.

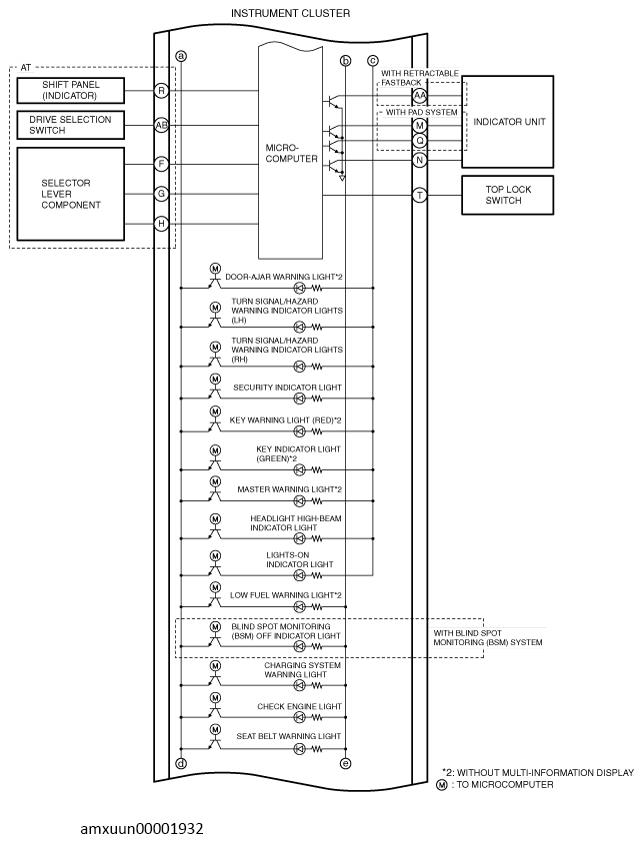

Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
