Transfer Location Index [FW6AX-El, GW6AX-El]

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

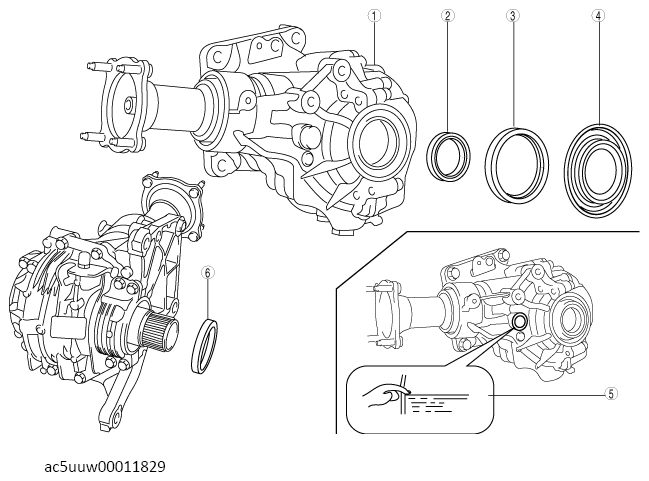

PARTS DESCRIPTION

1	Transfer (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] .) (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL, GW6AX-EL] .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL, GW6AX-EL] .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL, GW6AX-EL] .)
5	Transfer oil (See TRANSFER OIL INSPECTION [FW6AX-EL, GW6AX-EL] .) (See TRANSFER OIL REPLACEMENT [FW6AX-EL, GW6AX-EL] .)
6	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [FW6AX-EL, GW6AX-EL] .)
