Transfer Oil Inspection [FW6AX-El, GW6AX-El]

Replacement Part

Oil and Chemical Type

1. Park the vehicle on level ground.

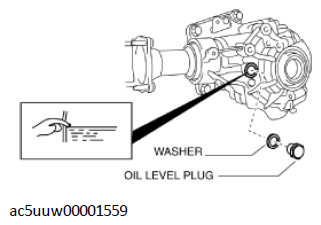

2. Remove the oil level plug with the washer.

   Courtesy of MAZDA MOTORS CORP.

3. Checking by hand, verify that the oil is near the brim of the plug hole.
   • If the oil level is low, add the specified amount and type of oil through the oil level plug hole.

   Transfer oil type
   MAZDA LONG LIFE HYPOID GEAR OIL SG1

4. Tighten the oil level plug with a new washer.

   Courtesy of MAZDA MOTORS CORP.

   TIGHTENING TORQUE SPECIFICATION



   Tightening torque
   40-58 N.m {4.1-5.9 kgf.m, 30-42 ft.lbf}
