Converter Housing Side (GW6AX-EL)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  3. Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)
  4. Remove the oil seal using a flathead screwdriver.
    G12233168Courtesy of MAZDA MOTORS CORP.
  5. Using the SSTs and a hammer, install a new oil seal.

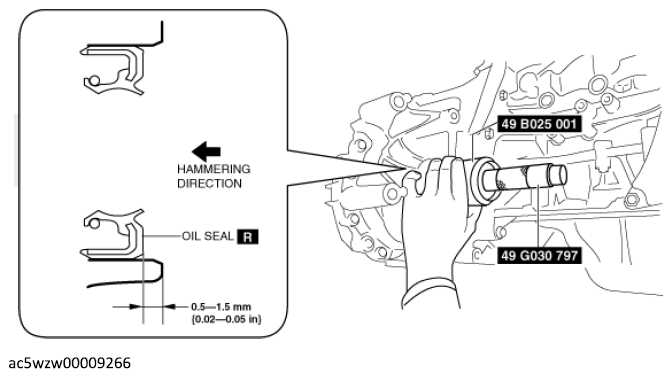

    G12233171Courtesy of MAZDA MOTORS CORP.
  6. Coat the lip of the oil seal with ATF.
  7. Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)
  8. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  9. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  10. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
