Automatic Transaxle Fluid (ATF) Replacement

WARNING: This page is about a different variant/trim than selected.

Replacement Part

Washer

Quantity: 1

Location of use: Drain plug

Oil and Chemical Type

ATF

Type: ATF FZ

WARNING:

Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)

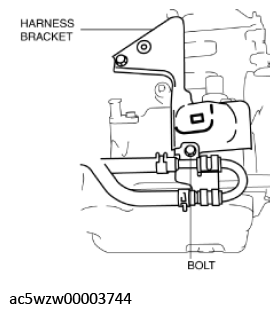

Disconnect the oil pipe No. 1 from the wiring harness bracket with the oil hose connected. (With oil cooler No. 2)

Courtesy of MAZDA MOTORS CORP.

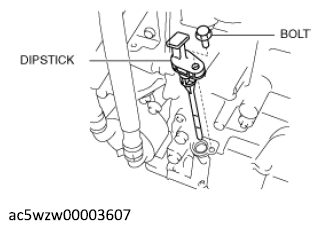

Remove the dipstick securing bolt.

Courtesy of MAZDA MOTORS CORP.
Remove the dipstick.
Remove the drain plug and washer, and drain the ATF.

Fig 1: Drain Plug, Washer And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install a new washer and drain plug.
Tightening torque

30-41 N.m {3.1-4.1 kgf.m, 23-30 ft.lbf}

Add ATF from the dipstick installation hole.

NOTE:

ATF type	Resupply amount (Reference)
ATF FZ	ATF is drained from drain plug: 3.5-4.9 L {3.7-5.1 US qt, 3.1-4.3 Imp qt}

Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .)
Insert the dipstick and install the securing bolt.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the oil pipe No. 1 to the wiring harness bracket. (With oil cooler No. 2)

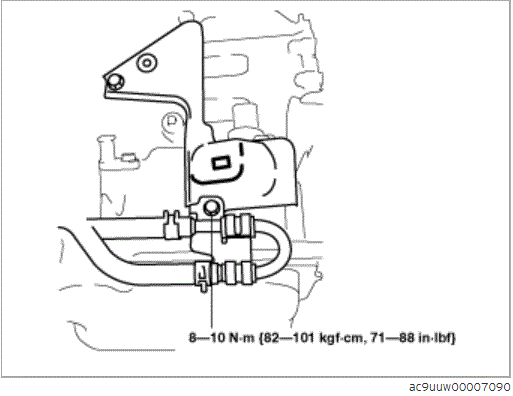

Fig 2: Oil Pipe No. 1 To Wiring Harness Bracket Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
