Converter Housing Side (GW6A-EL)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  3. Disconnect the front drive shaft (RH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)

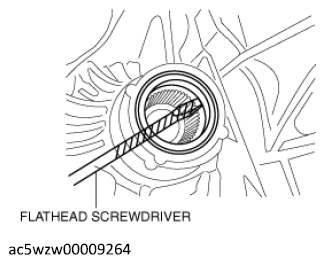

  4. Remove the oil seal using a flathead screwdriver.
    G12233168Courtesy of MAZDA MOTORS CORP.

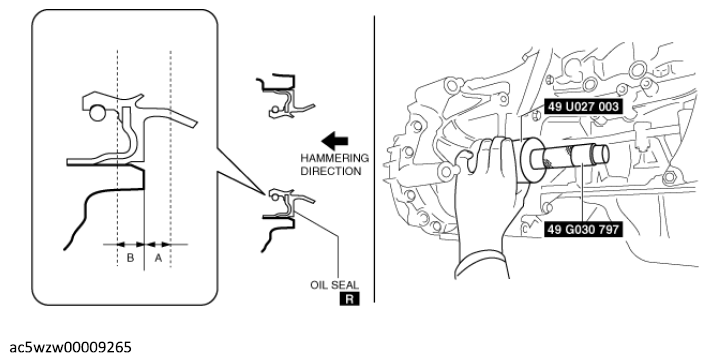

  5. Using the SSTs and a hammer, install a new oil seal.
    G12233169Courtesy of MAZDA MOTORS CORP.

    A: 0.5 mm {0.02 in}

    B: 0.8 mm {0.03 in}

  6. Coat the lip of the oil seal with ATF.
    CAUTION:
    • The oil seal is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the oil seal.
  7. Connect the front drive shaft (RH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  8. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  9. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  10. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
