Oil Cooler (Without Oil Cooler No. 2): Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] .)
Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)

Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)

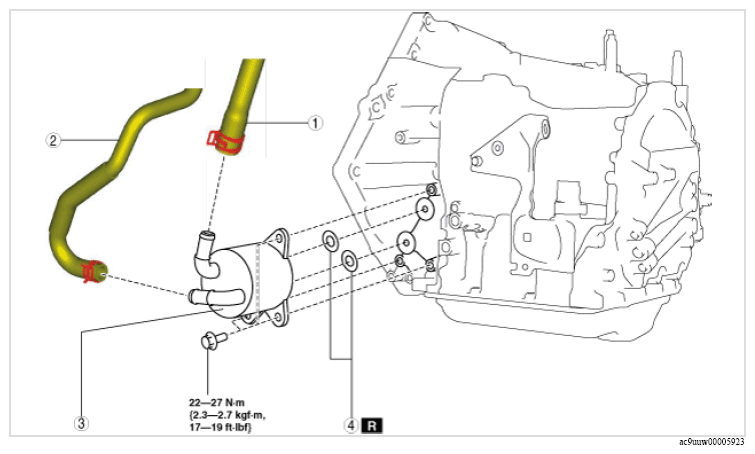

Fig 1: Oil Cooler Components Location With Torque Specification (Without Oil Cooler No. 2)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Water hose No. 1 (See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .)
2	Water hose No. 2 (See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .)
3	Water-cooled oil cooler
4	O-rings
