Oil Cooler (With Oil Cooler No. 2): Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] .)
- Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
- Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
Courtesy of MAZDA MOTORS CORP.

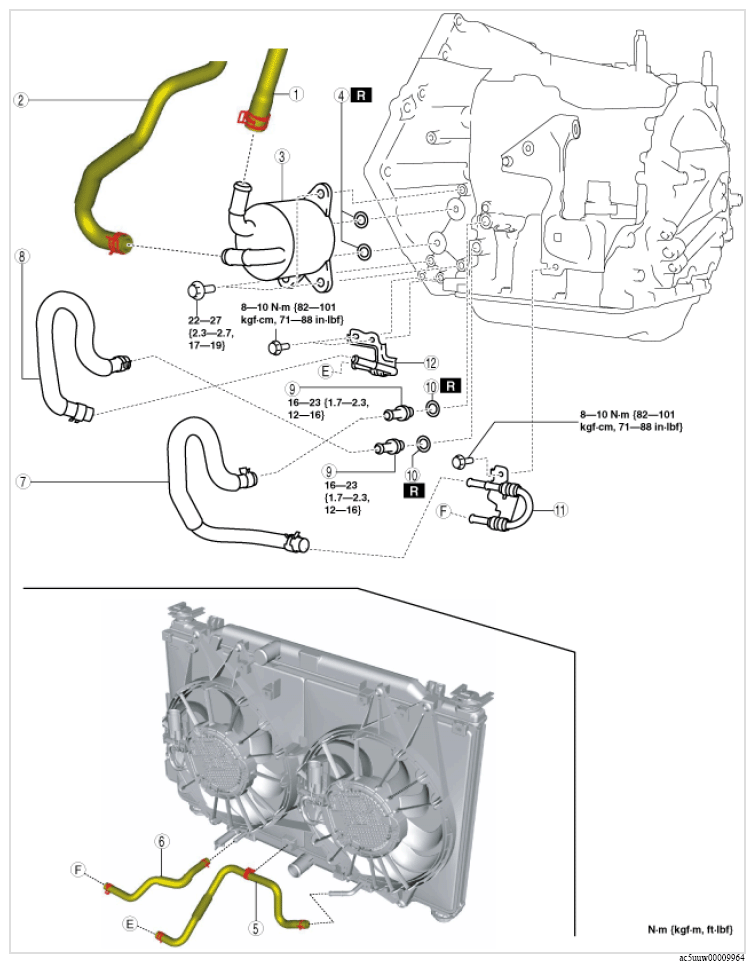

PART DESCRIPTION1 Water hose No. 1
(See Water hose No. 1 and No. 2 (oil cooler side) installation note .)2 Water hose No. 2
(See Water hose No. 1 and No. 2 (oil cooler side) installation note .)3 Water-cooled oil cooler 4 O-rings 5 Oil hose No. 1
(See Oil hose No. 1 (radiator outside) installation note .)
(See Oil hose No. 1 (oil pipe No. 2 side) installation note .)6 Oil hose No. 2
(See Oil hose No. 2 (radiator inside) installation note .)
(See Oil hose No. 2 (oil pipe No. 1 side) installation note .)7 Oil hose No. 3
(See Oil hose No. 3 (transaxle side) installation note .)
(See Oil hose No. 3 (oil pipe No. 1 side) installation note .)8 Oil hose No. 4
(See Oil hose No. 4 (transaxle side) installation note .)
(See Oil hose No. 4 (oil pipe No. 2 side) installation note .)9 Connector bolt 10 Gasket 11 Oil pipe No. 1 12 Oil pipe No. 2
