Drive Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

49 E011 1A0

Courtesy of MAZDA MOTORS CORP.

Ring gear brake set

Replacement Part

Bolt

Quantity: 8

Location of use: Drive plate

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL (VIN Y)] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)

Remove in the order indicated in the table.

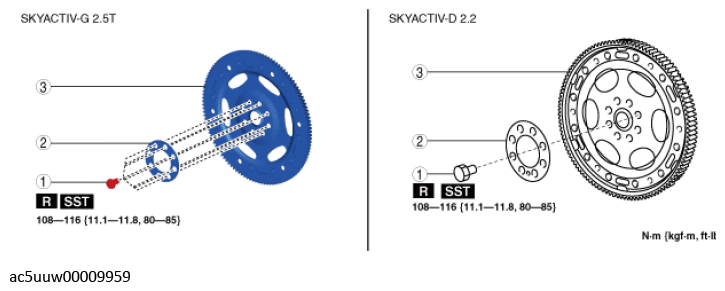

Fig 1: Backing Plate, Drive Plate And Installation Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Drive plate installation bolts (See DRIVE PLATE INSTALLATION BOLTS REMOVAL NOTE .) (See DRIVE PLATE INSTALLATION BOLTS INSTALLATION NOTE .)
2	Backing plate
3	Drive plate
