Drive Plate Installation Bolts Installation Note
WARNING: This page is about a different variant/trim than selected.

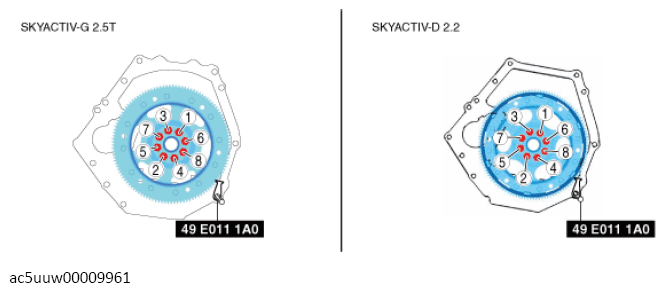

- Set the SST against the drive plate.
Courtesy of MAZDA MOTORS CORP.
- Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure.
Tightening torque
108-116 N.m {11.1-11.8 kgf.m, 80-85 ft.lbf}
