Purge Solenoid Valve Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

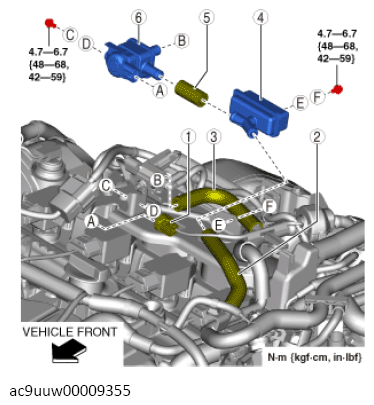

- Remove in the order indicated in the table.PARTS DESCRIPTION
1 Purge solenoid valve connector 2 Evaporative hose No. 1
(See EVAPORATIVE HOSE NO. 1 INSTALLATION NOTE .)3 Evaporative hose No. 3
(See EVAPORATIVE HOSE NO. 3 INSTALLATION NOTE .)4 Catch tank 5 Evaporative hose No. 2
(See EVAPORATIVE HOSE NO. 2 INSTALLATION NOTE .)6 Purge solenoid valve - Install in the reverse order of removal.
