Evaporative Hose No. 2 Installation Note
WARNING: This page is about a different variant/trim than selected.

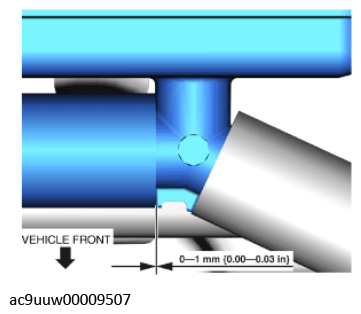

- Install the evaporative hose No. 2 as shown in the figure.
Catch tank side
 Courtesy of MAZDA MOTORS CORP.
|
Purge solenoid valve side
 Courtesy of MAZDA MOTORS CORP.
|
