U.S.A. and CANADA

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the floor under cover No. 2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove the floor under cover No. 1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Disconnect the evaporative hose No. 2. (See CHARCOAL CANISTER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

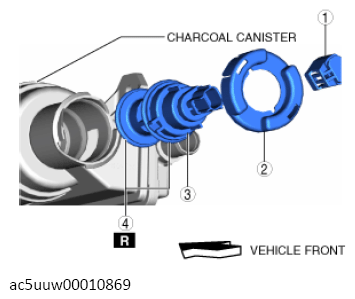

G13672665

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	CV solenoid valve connector
2	Cap (See CAP REMOVAL NOTE .) (See CAP INSTALLATION NOTE .)
3	CV solenoid valve (See CV SOLENOID VALVE REMOVAL NOTE .) (See CV SOLENOID VALVE INSTALLATION NOTE .)
4	O-ring
