Cap Removal Note

WARNING: This page is about a different variant/trim than selected.
NOTE:

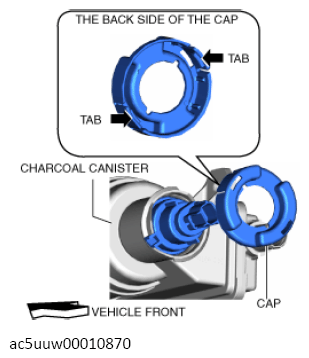

  • The cap has two tabs that clip onto the canister.
G13112879Courtesy of MAZDA MOTORS CORP.
  1. Unclip tabs then pull out the cap.
