- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Drain the fuel. (See FUEL DRAINING PROCEDURE .)
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

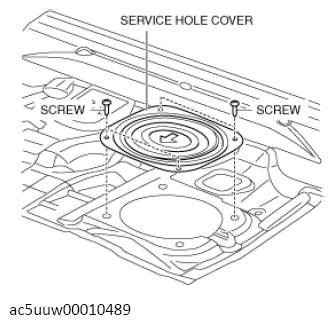

- Remove the service hole cover.
- Disconnect the following parts:
- Fuel pump unit connector
- Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
- Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Disconnect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
- Remove the HO2S clip from the body. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
- Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

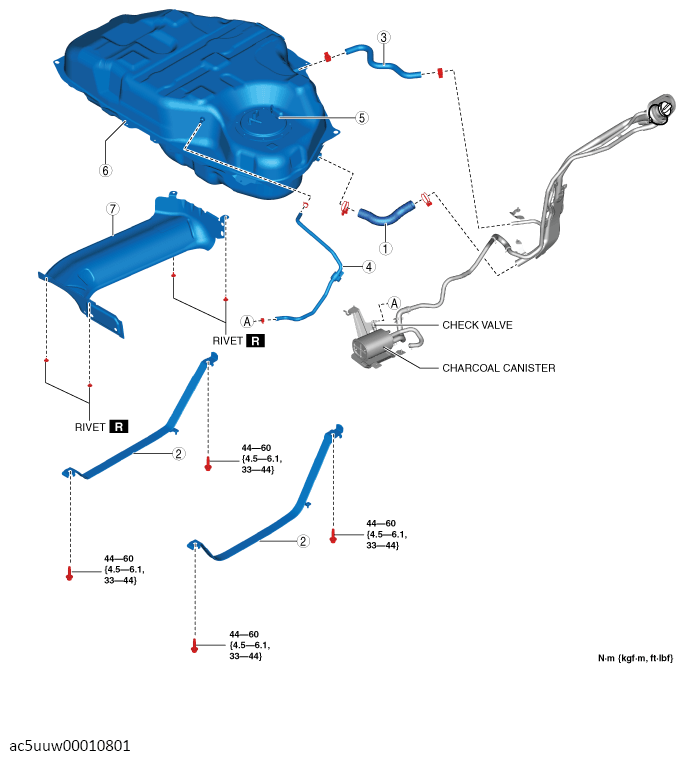

PARTS DESCRIPTION
| 1 | Joint hose (See JOINT HOSE INSTALLATION NOTE .) |
| 2 | Fuel tank strap |
| 3 | Breather hose (See BREATHER HOSE INSTALLATION NOTE .) |
| 4 | Evaporative hose (See EVAPORATIVE HOSE INSTALLATION NOTE .) |
| 5 | Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .) |
| 6 | Fuel tank (See FUEL TANK REMOVAL NOTE .) |
| 7 | Fuel tank insulator (See FUEL TANK INSULATOR REMOVAL NOTE .) |
