Joint hose installation note

WARNING: This page is about a different variant/trim than selected.
  1. Install the joint hose as shown in the figure.

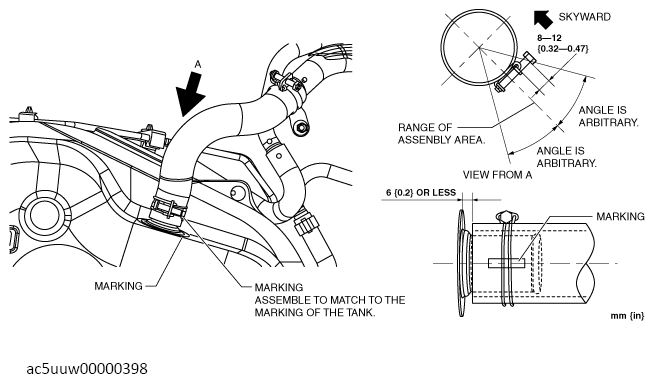

Fuel tank side

G13672476Courtesy of MAZDA MOTORS CORP.

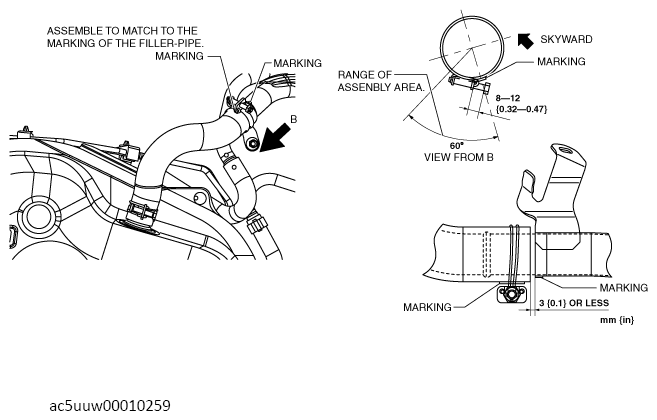

Fuel-filler pipe side

G13672477Courtesy of MAZDA MOTORS CORP.
