Rear Oil Seal Replacement: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

49 S033 101
Dust cover installer

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Rear oil seal
Quantity: 1
Location of use: Cylinder block

Oil and Chemical Type

Engine oil
Type: Recommended oil

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL (VIN Y)] (2WD) .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] (AWD) .)
Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .)

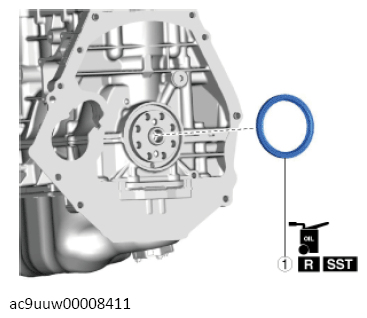

Remove in the order indicated in the table.
Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Rear oil seal
1 (See Rear Oil Seal Removal Note .)
(See Rear Oil Seal Installation Note .)
