Rear Oil Seal Installation Note

WARNING: This page is about a different variant/trim than selected.

Apply clean engine oil to the inner surface of a new rear oil seal.
Insert the rear oil seal into the cylinder block by hand.

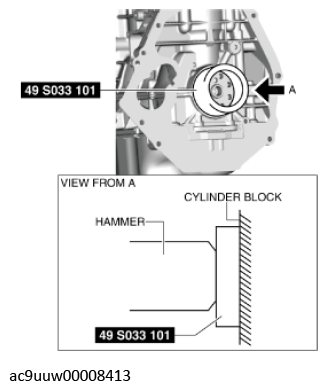

Tap the oil seal in evenly using the SST and a hammer.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

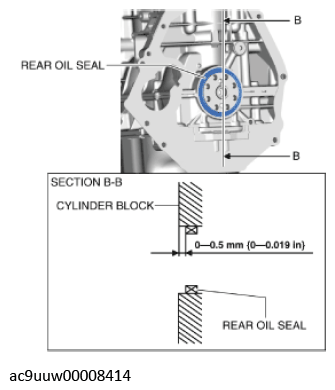

Rear oil seal press on amount

0-0.5 mm {0-0.019 in}
