No. 1 Engine Mount (2WD): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover No.
  2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

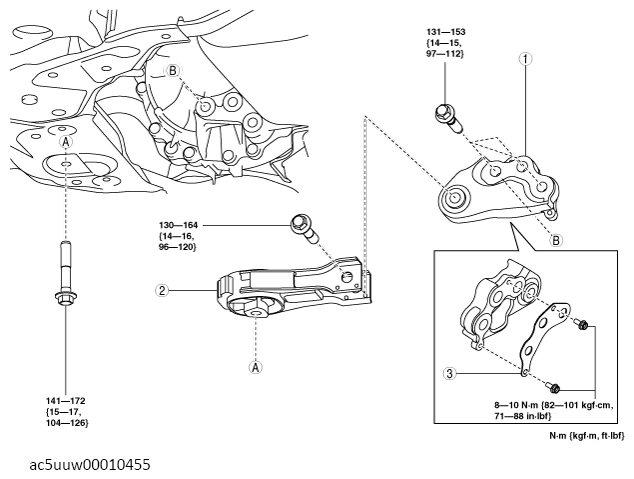

    Fig 1: No. 1 Engine Mount Components With Torque Specification (2WD)
    G13671648Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 No. 1 engine mount bracket
    (See No. 1 engine mount installation note (2WD) .)
    2 No. 1 engine mount rubber
    (See No. 1 engine mount installation note (2WD) .)
    3 Bracket plate
