No. 1 engine mount installation note (2WD)

WARNING: This page is about a different variant/trim than selected.

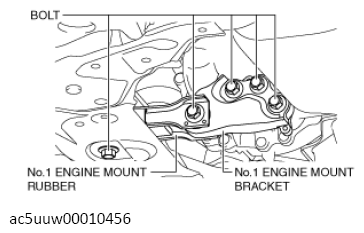

Install the No. 1 engine mount rubber and bracket, and temporarily tighten the bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Tighten the No. 1 engine mount bracket installation bolts in the order shown in the figure.

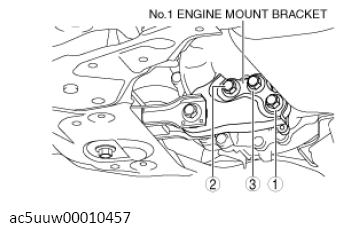

Fig 1: No. 1 Engine Mount Bracket Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

131-153 N.m {14-15 kgf.m, 97-112 ft.lbf}

Tighten the No. 1 engine mount rubber installation bolts in the order shown in the figure.

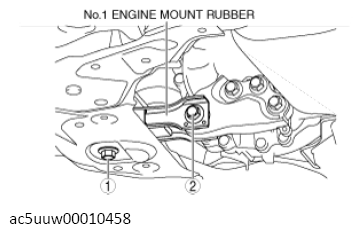

Fig 2: No. 1 Engine Mount Rubber Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

Tightening torque

PART DESCRIPTION

Installation position	Tightening torque
1	141-172 N.m {15-17 kgf.m, 104-126 ft.lbf}
2	130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}
