Water Hose: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [(VIN 7 & VIN L) (US)] .)
- Air cleaner cover
- Air cleaner element
- Fresh-air duct
- Air cleaner case
- Air hose
- Resonance chamber
Remove the battery. (See BATTERY REMOVAL/INSTALLATION [(VIN 7 & VIN L) (US)] .)
Remove the battery tray and PCM component as a single unit. (See BATTERY REMOVAL/INSTALLATION [(VIN 7 & VIN L) (US)] .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [(VIN 7 & VIN L) (US)] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [(VIN 7 & VIN L) (US)] .)

Courtesy of MAZDA MOTORS CORP.

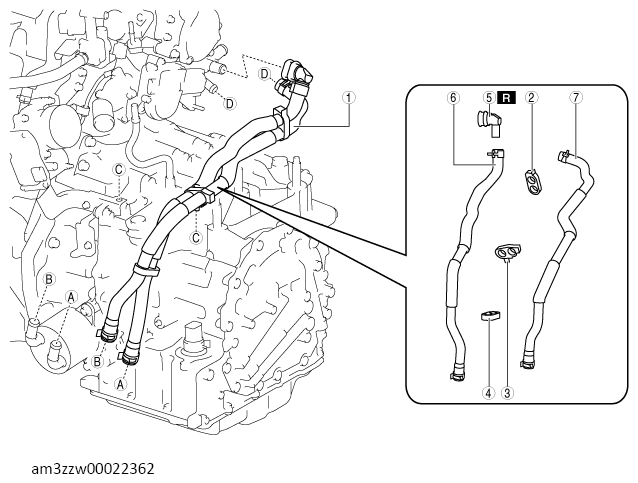

PART DESCRIPTION

1	Water hose component (See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) REMOVAL NOTE .) (See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .) (See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) INSTALLATION NOTE .) (See WATER HOSE NO. 2 (WATER PIPE SIDE) INSTALLATION NOTE .)
2	Hose clip No. 1
3	Hose clip No. 2
4	Hose clip No. 3
5	Quick release connector
6	Water hose No. 1 (See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) REMOVAL NOTE .) (See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .) (See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) INSTALLATION NOTE .)
7	Water hose No. 2 (See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .) (See WATER HOSE NO. 2 (WATER PIPE SIDE) INSTALLATION NOTE .)
