Water hose No. 1 (coolant control valve side) removal note

WARNING: This page is about a different variant/trim than selected.

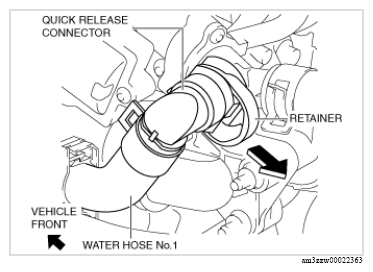

Move the retainer in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Disconnect the quick release connector from the coolant control valve.
