Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

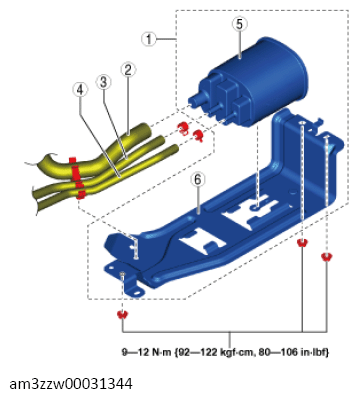

Fig 1: Charcoal Canister Components With Torque Specification (Except USA And Canada)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Charcoal canister component (See CHARCOAL CANISTER COMPONENT INSTALLATION NOTE .)
2	Evaporative hose No. 1 (See EVAPORATIVE HOSE INSTALLATION NOTE .)
3	Evaporative hose No. 2 (See EVAPORATIVE HOSE INSTALLATION NOTE .)
4	Evaporative hose No. 3 (See EVAPORATIVE HOSE INSTALLATION NOTE .)
5	Charcoal canister (See CHARCOAL CANISTER REMOVAL NOTE .)
6	Charcoal canister bracket
