Charcoal canister removal note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the charcoal canister and charcoal canister bracket as a single unit.

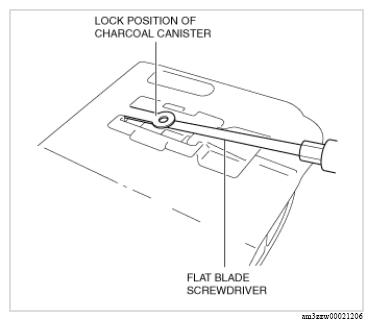

  2. Release the lock as shown in the figure.
    G13175197Courtesy of MAZDA MOTORS CORP.
  3. Remove the charcoal canister.
