Charcoal canister (sub): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the rear tire (RH). (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  3. Remove the rear splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

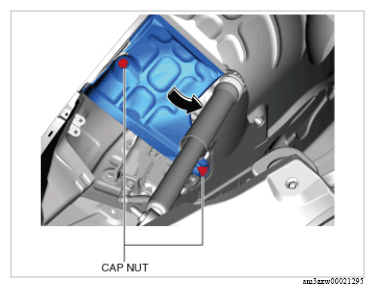

  4. Remove the cap nuts. (See MUDGUARD REMOVAL/INSTALLATION .)
    G13175262Courtesy of MAZDA MOTORS CORP.
  5. Set the rear mudguard (RH) aside. (See MUDGUARD REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.

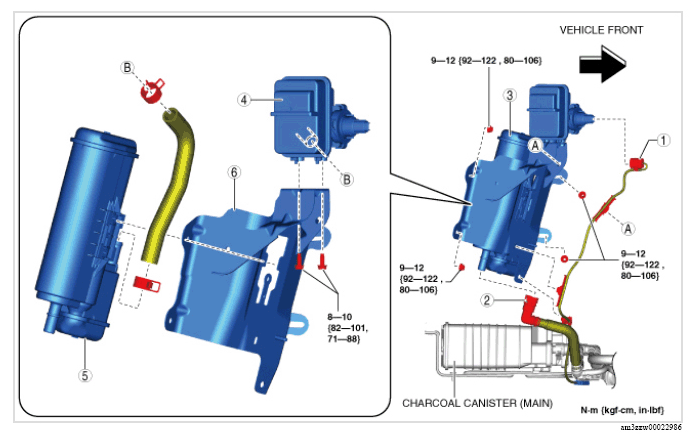

    Fig 1: Charcoal Canister Sub Components With Torque Specification
    G13175263Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 CV solenoid valve connector
    2 Quick release connector
    (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
    3 Charcoal canister (sub) component
    4 Air filter component
    5 Charcoal canister (sub)
    (See CHARCOAL CANISTER (SUB) REMOVAL NOTE .)
    (See CHARCOAL CANISTER (SUB) INSTALLATION NOTE .)
    6 Charcoal canister (sub) bracket
