Charcoal canister (sub) removal note

WARNING: This page is about a different variant/trim than selected.

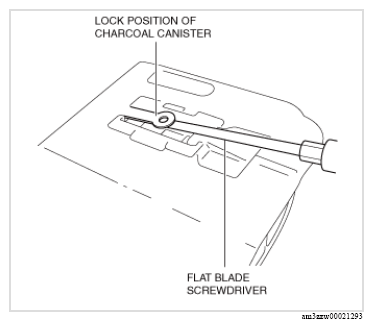

  1. Release the lock as shown in the figure.
    G13175260Courtesy of MAZDA MOTORS CORP.
  2. Remove the charcoal canister (sub).
