Exhaust system insulator removal/installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the floor under cover No. 1 (RH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

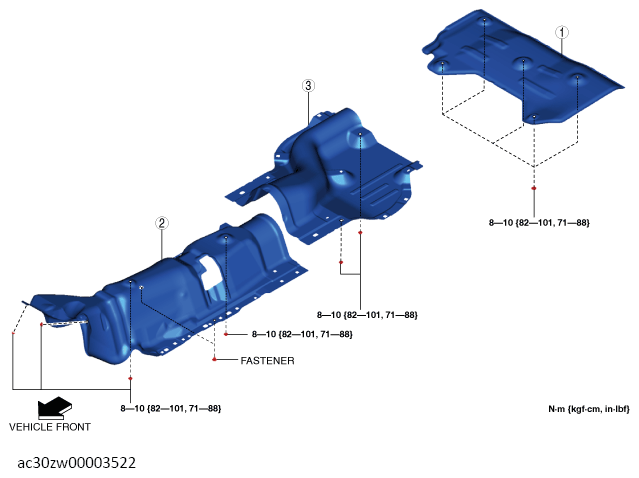

    Fig 1: Exhaust System Insulator Components With Torque Specification (2WD)
    G13732101Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Insulator (rear)
(See INSULATOR (REAR) INSTALLATION NOTE .)
2 Insulator (front)
(See INSULATOR (FRONT) INSTALLATION NOTE .)
3 Insulator (middle)
(See INSULATOR (MIDDLE) INSTALLATION NOTE .)


  1. Remove the floor under cover No. 1 (RH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION [(US)] .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
    Fig 1: Exhaust System Insulator Components With Torque Specification (AWD)
    G13557375Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Insulator (rear)
(See INSULATOR (REAR) INSTALLATION NOTE .)
2 Insulator (front)
(See INSULATOR (FRONT) INSTALLATION NOTE .)
3 Insulator (middle)
(See INSULATOR (MIDDLE) INSTALLATION NOTE .)
