Insulator (front) Installation Note

WARNING: This page is about a different variant/trim than selected.

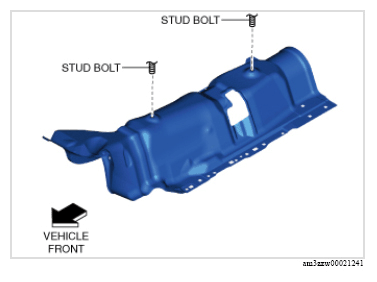

  1. Align the stud bolts shown in the figure with the insulator (front) and install.
    G13175172Courtesy of MAZDA MOTORS CORP.
  2. Install the fasteners.
  3. Tighten the nuts to the specified torque.
