Step 2

WARNING: This page is about a different variant/trim than selected.

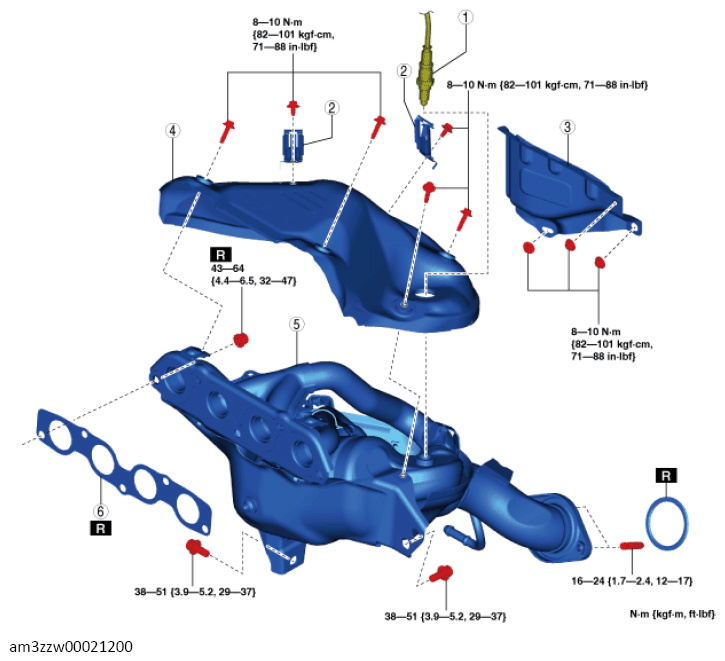

Fig 1: Exhaust System Components With Torque Specification - AWD (Step 2)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
2	Clip
3	Insulator
4	Exhaust manifold insulator (See EXHAUST MANIFOLD INSULATOR REMOVAL NOTE .) (See EXHAUST MANIFOLD INSULATOR INSTALLATION NOTE .)
5	Exhaust manifold (WU-TWC) (See EXHAUST MANIFOLD REMOVAL NOTE .) (See EXHAUST MANIFOLD INSTALLATION NOTE .)
6	Exhaust manifold gasket
