Rear Oil Seal Replacement: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

SPECIAL SERVICE TOOL DESCRIPTION

49 E033 101
Dust cover installer [VIN 7]

Courtesy of MAZDA MOTORS CORP.

49 S033 101
Dust cover installer [VIN L]

Courtesy of MAZDA MOTORS CORP.

Replacement Part

PART DESCRIPTION

Rear oil seal

Quantity: 1

Location of use: Cylinder block

Oil and Chemical Type

OIL AND CHEMICAL TYPE DESCRIPTION

Engine oil

Type: Recommended oil

Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R] (MTX).) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL (US)] (ATX).) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT (US) .)
Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R] (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (US)] (ATX).) (See DRIVE PLATE REMOVAL/INSTALLATION (US) .)

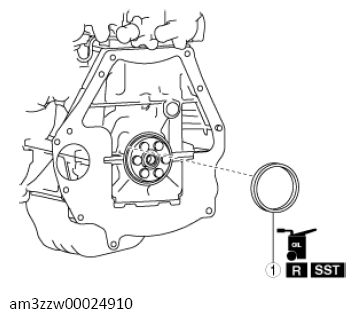

Remove in the order indicated in the table.

Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Rear oil seal (See REAR OIL SEAL REMOVAL NOTE .) (See REAR OIL SEAL INSTALLATION NOTE .)
