Wheel Hub Component Removal/Installation 2WD (Us): Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| Rear wheel hub bolt Quantity: 5 Location of use: Rear wheel hub |
CAUTION:
- Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Switch the ignition ON (engine off).
- Release the electric parking brake.
- Switch the ignition off while pressing the electric parking brake switch.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Disconnect the electric parking brake motor gear unit connector. (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION .)

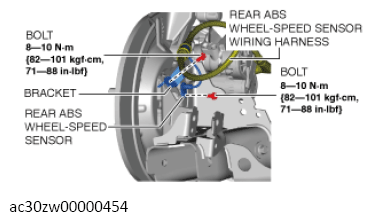

- Remove the rear ABS wheel-speed sensor and the bracket from the wheel hub component.
- Disconnect the rear ABS wheel-speed sensor wiring harness and set it aside so that it does not interfere with the servicing.
- Remove the rear brake caliper component and suspend it out of the way using a cable. (See REAR BRAKE DISC REMOVAL/INSTALLATION (US) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

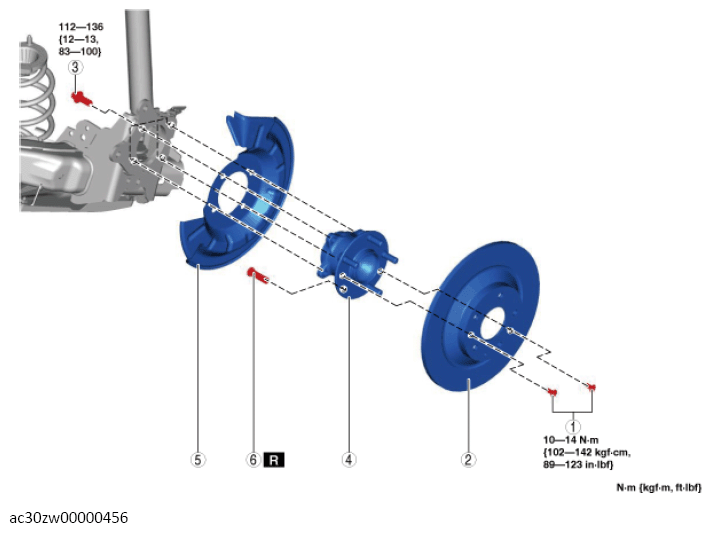

COMPONENT DESCRIPTION
| 1 | Screw |
| 2 | Rear Disc plate |
| 3 | Bolt (wheel hub component) |
| 4 | Wheel hub component (See WHEEL HUB COMPONENT INSTALLATION NOTE .) |
| 5 | Dust cover |
| 6 | Rear wheel hub bolt (See REAR WHEEL HUB BOLT REMOVAL NOTE .) (See REAR WHEEL HUB BOLT INSTALLATION NOTE .) |
