Wheel Hub Component Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

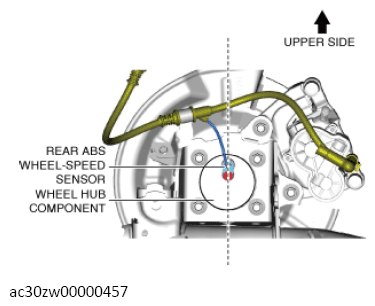

Install the wheel hub component with the rear ABS wheel-speed sensor toward the upper side.

Courtesy of MAZDA MOTORS CORP.
