Front Door Speaker Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the procedure is performed while holding the front door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
3. Power window subswitch (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
4. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)

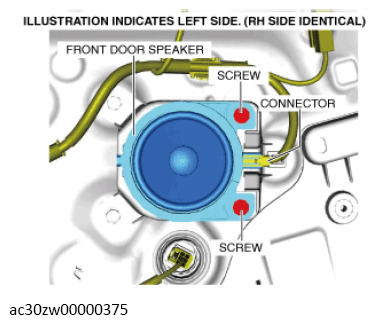

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

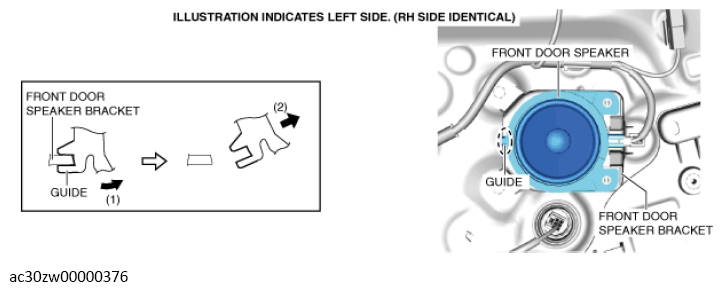

Move the front door speaker in the direction of the arrow in the order of (1), (2) while detaching the guide.

Courtesy of MAZDA MOTORS CORP.
When removing the front door speaker bracket, perform the following procedure:
1. Remove the bolts.

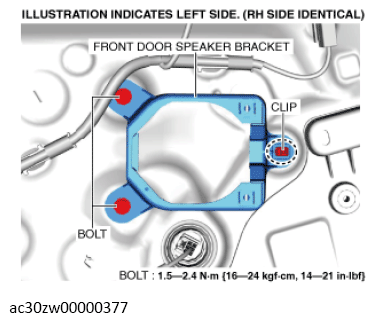

  Fig 1: Front Door Speaker Bracket, Clip And Bolts With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
2. Remove the clip.
3. Remove the front door speaker bracket.
Install in the reverse order of removal.
