Antenna Feeder No. 2 Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
Disconnect the connector.

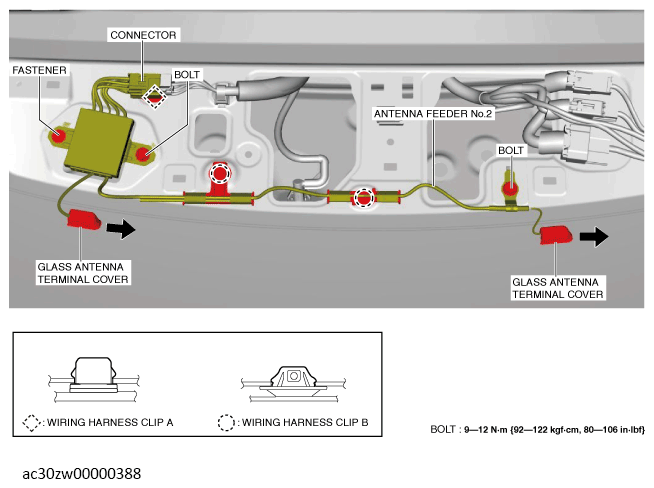

Fig 1: Antenna Feeder No. 2, Glass Antenna Terminal Cover, Connector, Fastener And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness clips A.
Remove the wiring harness clips B. (with wiring harness clip B)
Remove the glass antenna terminal cover in the direction of the arrow shown in the illustration.
Remove the bolts.
Remove the fastener.
Remove the antenna feeder No. 2.
Install in the reverse order of removal.
