Rear Side Radar Sensor Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Replacement Part

REPLACEMENT PART DESCRIPTION

Nut
Quantity: 3
Location of use: Rear side radar sensor.
WARNING:
  • If the rear side radar sensor is installed at an incorrect angle, the rear side radar sensor cannot detect obstructions and the system may not operate normally. When installing the rear side radar sensor, verify that there is no damage or deformation to the installation part (rear bumper) and perform the installation correctly.
  • If the rear side radar sensor gets hit, the rear side radar sensor angle could change and obstructions cannot be detected correctly which could result in an accident. In this case, always verify the DTC, perform the rear side radar sensor aiming adjustment, and verify that the installation angle is deviated. (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)
  4. Remove the following parts:
    1. Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION .)
    2. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION .)
    4. Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
    5. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION (US) .)
  5. Remove the nuts.

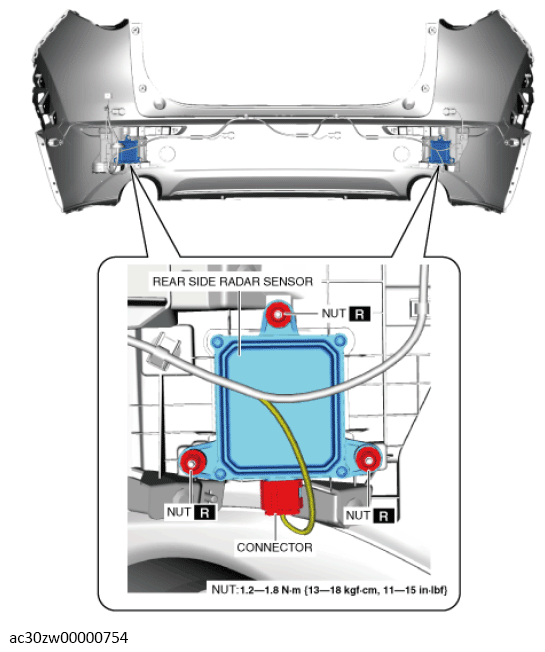

    Fig 1: Rear Side Radar Sensor, Connector And Nuts With Torque Specification
    G13083403Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connector.
  7. Remove the rear side radar sensor. (See REAR SIDE RADAR SENSOR INSTALLATION NOTE .)
  8. Install in the reverse order of removal.
  9. Perform the rear side radar sensor aiming. (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
