Front Cross Traffic Alert (FCTA) System Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

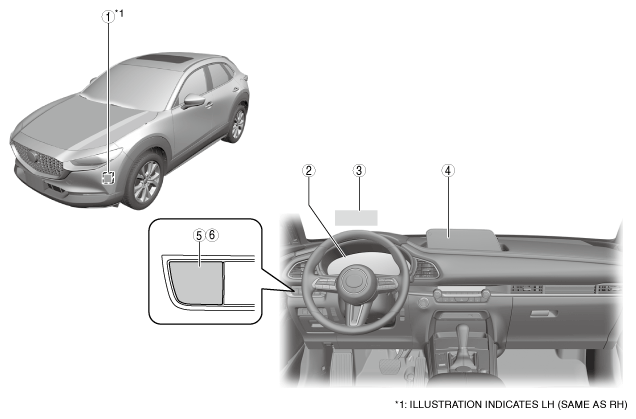

COMPONENT DESCRIPTION

1	Front side radar sensor (See FRONT SIDE RADAR SENSOR REMOVAL/INSTALLATION .) (See FRONT SIDE RADAR SENSOR INSPECTION .) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION (US) .)
3	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION (US) .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
4	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
5	i-ACTIVSENSE switch (See I-ACTIVSENSE SWITCH REMOVAL/INSTALLATION .) (See I-ACTIVSENSE SWITCH INSPECTION .)
6	i-ACTIVSENSE OFF switch (See I-ACTIVSENSE OFF SWITCH REMOVAL/INSTALLATION .) (See I-ACTIVSENSE OFF SWITCH INSPECTION .)
