Static Aiming

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Empty the vehicle by removing all the cargo except for the spare tire, jack and tools equipped on the vehicle.
  2. Adjust the air pressure of each tire to the specified value.
  3. Move the vehicle to level ground.

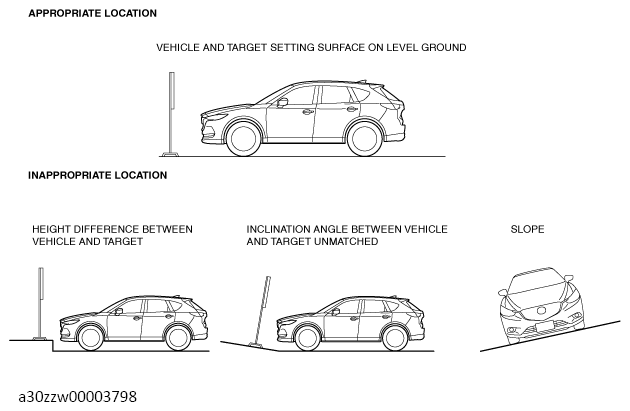

    CAUTION:
    • If the setting surface height and angle between the vehicle and the target differs, correct FSC aiming cannot be done. Perform the FSC aiming with the vehicle and target setting surface on level ground.
    G13561424Courtesy of MAZDA MOTORS CORP.

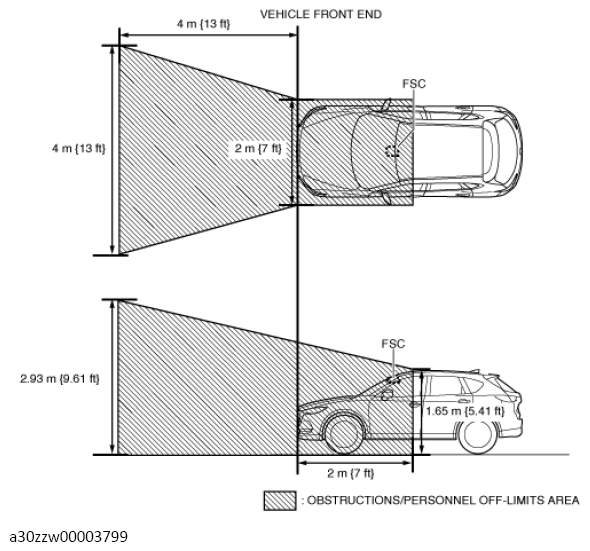

  4. Verify that there are no obstructions such as metal objects in the shaded areas shown in the figure.
    CAUTION:
    • If the FSC aiming is performed with obstructions such as white and black patterned objects or reflective metal in the shaded areas, the FSC will determine such obstructions as targets and the FSC aiming procedure will not be performed correctly. Move all obstructions away from the shaded areas, and when performing the aiming, do not have personnel standing in the shaded areas.
    G13561425Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Because DTC B14F0:04 and B14F0:76 are output if aiming is not performed, continue to perform the FSC aiming only if DTC B14F0:04 and B14F0:76 are output.
  5. Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B14F0:04 and B14F0:76 are displayed. (See DTC INSPECTION .)
    NOTE:
    • The center of the brand emblem indicates the center position of the vehicle.
    • Use a commercially-available leveling line.

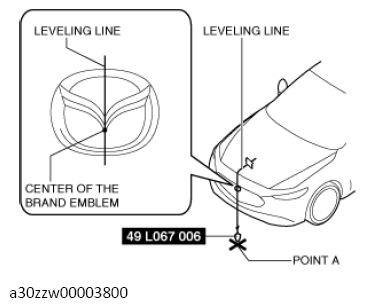

  6. Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.
    G13561426Courtesy of MAZDA MOTORS CORP.

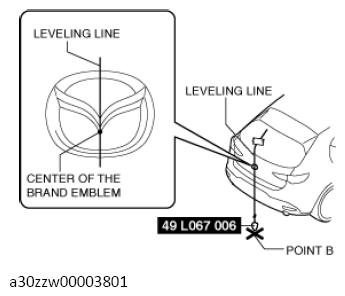

  7. Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.
    G13561427Courtesy of MAZDA MOTORS CORP.

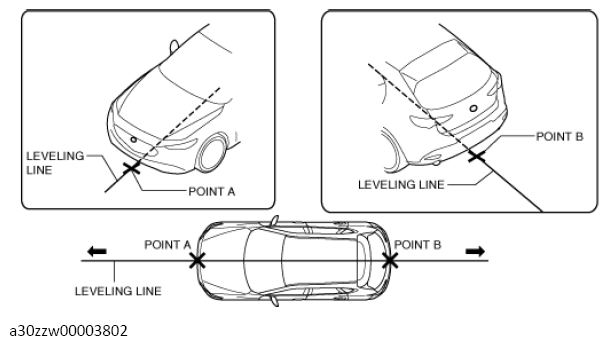

  8. Secure the end of the leveling line over point B.
  9. Pull the leveling line towards the front and rear of the vehicle and adjust it so that it passes over points A and B.
    G13561428Courtesy of MAZDA MOTORS CORP.
  10. Secure the leveling line.
  11. Mark the line (position A) at the point 160 cm {63.0 in} from point A and in the direction forward of the vehicle.
    G13561429Courtesy of MAZDA MOTORS CORP.

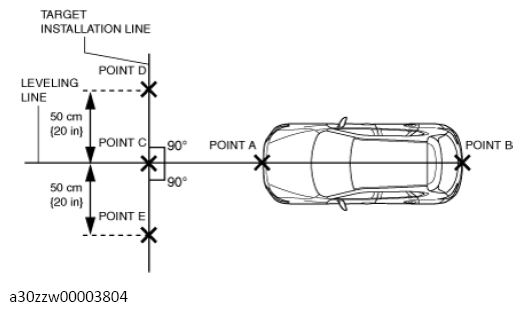

  12. Mark the points (points D and E) 50 cm {20 in} from point C on the line which runs perpendicular to the vehicle center line.
    G13561430Courtesy of MAZDA MOTORS CORP.
  13. Draw a line connecting points D, C, and E (target setting line).
  14. Print out 6 sheets of each of the following target papers without using scaling.
    NOTE:
    • If the target sheets cannot be printed, follow the dimensions shown in Step 16 to make target sheets.
    G13561431Courtesy of MAZDA MOTORS CORP.
    G12183333Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When attaching the target, if tape is applied to the front of the target it could reflect light and adversely affect the aiming accuracy. When taping the two target sheets together, apply the cellophane tape to the back of the target pattern.
  15. Cut the printed target sheets and line up the two sheets as shown in the figure, and then apply cellophane tape to the back of the target.
    G13561433Courtesy of MAZDA MOTORS CORP.
  16. Verify that the taped-together target is of the dimensions shown in the figure.
    G13561434Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When attaching the target, if tape is applied to the front of the target it could reflect light and adversely affect the aiming accuracy. When attaching the target, apply the double-sided adhesive tape to the back of the target and attach it to the board.
  17. Apply double-sided adhesive tape to the back of the target.
    NOTE:
    • Use a wooden board which does not reflect light to attach the target.
  18. Align the target sheets to the height shown in the figure, and apply them to a board.
    G13561435Courtesy of MAZDA MOTORS CORP.

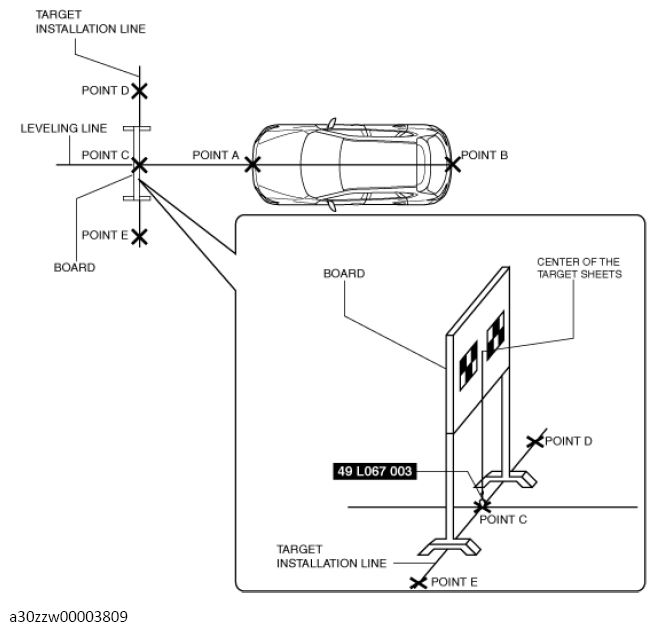

  19. Align the center of the target with point C using the SST.
    G13561436Courtesy of MAZDA MOTORS CORP.
  20. Align so that the board and the target setting line are level with the center of point C.
  21. Connect the M-MDS to the DLC-2.
  22. Switch the ignition ON (engine off).
  23. Activate the M-MDS and perform the following procedure.
    1. Press [Start] to start the vehicle identification.
    2. Press the [Toolbox] tab.
    3. Press the [Work Support] icon.
    4. Press [i-ACTIVSENSE].
    5. Press [Static aiming].
    6. Press [Run] for [Static aiming for FSC].
    7. Confirm the Static aiming for FSC procedure from Step (8) to Step (9) and press [Next].
    8. Input the following value and press [Next].
      NUMERICAL VALUE SPECIFICATION

      Item Numerical value (mm)
      Distance from target to front wheel center 0
    9. Verify the M-MDS display.
      • If [Procedure successful] is displayed
        • FSC aiming is completed
      • If [Procedure unsuccessful] is displayed
        • If the forward sensing camera (FSC) was replaced, the vehicle data learning by the forward sensing camera (FSC) may not have been completed. Switch the ignition OFF and allow the forward sensing camera (FSC) to complete the vehicle data learning.
        • Perform an inspection according to the following table for the error code procedure.
        • If an error code other than the error codes in the following table is displayed, verify the following and perform the FSC aiming again if there is no malfunction, as there could be a communication error between the FSC and the diagnostic tester.
      • Is the battery positive voltage for the vehicle 8 V or more?
      • Is the ignition switched ON (engine off or on)?
      ERROR CODE DESCRIPTION

      Error code Detection condition
      01 Target set position or input value is incorrect
      02 Visibility where aiming is performed is bright or dark, target is dirty
      03 Target is not detected
      04 Target moves during aiming
      05 Input vehicle value exceeds specification
      06 Configuration is not completed
      08 Aiming is not performed
      FF Aiming cannot be performed due to communication error

Error code 01/05

ERROR CODE 01/05 - DIAGNOSTIC PROCEDURE

Step Inspection Action
1 VERIFY THE INPUT VALUE
  • Verify the value indicated in Step 23 for aiming with the input value.
  • Is the value input correctly?
Yes Go to the next step.
No Input the value indicated in Step 23 for aiming, then go to the next step.
2 VERIFY TARGET POSITION
  • Verify the following.
    • Are the vehicle and target setting screen set on level ground?
    • Is the target set to the position indicated in the aiming procedure?
    • Are the board and the target set line parallel and is the height at the center of the target correct?
    • Was the target made as instructed in the procedure?
      • Is there any dirt, cracks, damage, or wrinkling on the target and board?
  • Is there a malfunction?
Yes Repair the target for malfunction and go to the next step.
No Go to the next step.
3 PERFORM FSC AIMING
  • Perform the FSC aiming.
  • Is the FSC aiming procedure completed correctly?
Yes FSC aiming procedure is completed.
No DTC 01/05 is displayed Error code other than error code 01/05 is displayed
  • Go to the next step.
  • Go to the procedure for the displayed error code.
4 PERFORM THE FSC AIMING PROCEDURE USING THE ACTUALLY MEASURED VALUE
  • Measure the distance from the target to the front wheel center.
  • Perform the FSC aiming procedure using the actually measured value.
  • Is the FSC aiming procedure completed correctly?
Yes FSC aiming procedure is completed.
No Go to the next step.
5 VERIFY DTC
  • Perform the DTC inspection for the FSC. (See DTC INSPECTION .)
  • Is a DTC displayed?
Yes Go to the applicable DTC inspection.
(See DTC TABLE [FORWARD SENSING CAMERA (FSC) (US)] .)
(See DTC TABLE [VEHICLE CONTROL MODULE (US)] .)
No PERFORM FSC AIMING AGAIN

Error code 02/03/04

ERROR CODE 02/03/04 - DIAGNOSTIC PROCEDURE

Step Inspection Action
1 VERIFY TARGET AND TARGET SETTING ENVIRONMENT
  • Verify the following.
    • Are the windshield, FSC lens, or FSC cover dirty or scratched?
    • There is no light such as direct sunlight around the cameras or target.
    • Is the area around the camera or target shaded?
    • Is there any dirt, cracks, damage, or wrinkling on the target and board?
    • Is the target produced in white and black?
    • Are there obstructions or moving objects in the shaded area indicated in the aiming procedure in Step 4?
    • Was the target made as instructed in the procedure?
      • Has the target moved during aiming or not?
  • Is there a malfunction?
Yes Repair the malfunctioning location and go to the next step.
No Go to the next step.
2 PERFORM FSC AIMING
  • Perform the FSC aiming.
  • Is the FSC aiming procedure completed correctly?
Yes FSC aiming procedure is completed.
No Error code 02/03/04 is displayed Code other than error code 02/03/04 is displayed
  • Go to the next step.
  • Go to the procedure for the displayed error code.
3 PERFORM THE FSC AIMING PROCEDURE USING THE ACTUALLY MEASURED VALUE
  • Measure the distance from the target to the front wheel center.
  • Perform the FSC aiming procedure using the actually measured value.
  • Is the FSC aiming procedure completed correctly?
Yes FSC aiming procedure is completed.
No Go to the next step.
4 VERIFY DTC
  • Perform the DTC inspection for the FSC. (See DTC INSPECTION .)
  • Is a DTC displayed?
Yes Go to the applicable DTC inspection.
(See DTC TABLE [FORWARD SENSING CAMERA (FSC) (US)] .)
(See DTC TABLE [VEHICLE CONTROL MODULE (US)] .)
No PERFORM FSC AIMING AGAIN

Error code 06/08

ERROR CODE 06/08 - DIAGNOSTIC PROCEDURE

Step Inspection Action
1 PERFORM FSC AIMING
  • Perform the FSC aiming.
  • Is the FSC aiming procedure completed correctly?
Yes FSC aiming procedure is completed.
No DTC 06/08 is displayed Error code other than error code 06/08 is displayed
  • Go to the next step.
  • Go to the procedure for the displayed error code.
2 VERIFY DTC
  • Perform the DTC inspection for the FSC. (See DTC INSPECTION .)
  • Is a DTC displayed?
Yes Go to the applicable DTC inspection.
(See DTC TABLE [FORWARD SENSING CAMERA (FSC) (US)] .)
(See DTC TABLE [VEHICLE CONTROL MODULE (US)] .)
No PERFORM FSC AIMING AGAIN

Error code FF

ERROR CODE FF - DIAGNOSTIC PROCEDURE

Step Inspection Action
1 VERIFY DTC
  • Perform the DTC inspection for the FSC. (See DTC INSPECTION .)
  • Is a DTC displayed?
Yes Go to the applicable DTC inspection.
(See DTC TABLE [FORWARD SENSING CAMERA (FSC) (US)] .)
(See DTC TABLE [VEHICLE CONTROL MODULE (US)] .)
No PERFORM FSC AIMING AGAIN
