Magnetic Clutch is Disassembled/Assembled with A/C Compressor Removed from Vehicle: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

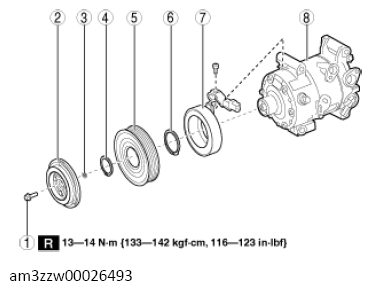

Fig 1: Magnetic Clutch Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt (See BOLT REMOVAL/INSTALLATION .)
2	Pressure plate
3	Shim
4	Snap ring
5	A/C compressor pulley
6	Snap ring
7	Stator
8	A/C compressor body

Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G] .)
